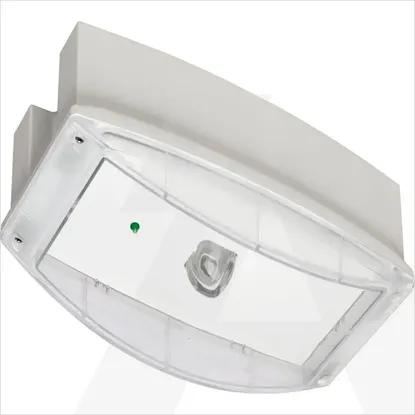

IP65PLP3HCGL | Emergency luminaire i-P65+ L, 3h, PC enclosure, open-space, CGLine+
Code: 1957540
ManufacturerEaton
Catalog numberIP65PLP3HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233262
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Type of control gearLED operating device current-controlled
Lamp holderNone
Connection typePlug-in connection
Power supply systemPeripheral (individual battery)
Colour housingGrey
Voltage typeAC
Built-in width80mm
Width80mm
Suitable for labelling typeOther
Conductor cross section2.5mm²
Material housingPlastic
Lamp typeLED not exchangeable
Number of poles4
Number of lighting heads1
Height/depth168mm
Length340mm
Impact strengthIK08
With remote switch connectionYes
Material coverPlastic, transparent
Built-in length340mm
Rated luminous flux according to IEC 62722-2-1510lm
With pictogramNo
Rated ambient temperature according to IEC62722-2-15 - 40°C
Monitoring equipmentSafety module for monitoring (central feeded system)
Built-in height/depth168mm
Light distributorFocal lens
Nominal operation time3 - 3h
Nominal voltage220 - 240V
Power factor0.5
Type of wiringSuitable for through wiring
Battery qualityNiCd
With light sourceYes
Luminaire with limited surface temperature, sign "D“Yes
Colour temperature6200 - 6200K
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power3.2W
