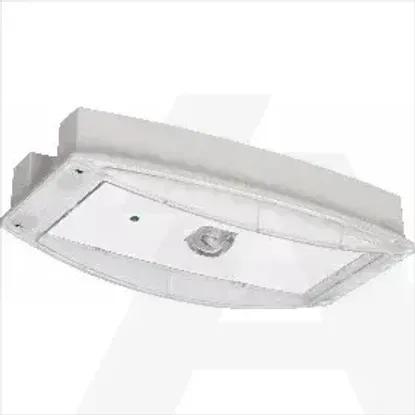

IP65PLP3HIS | Emergency luminaire i-P65+ L, 3h, PC enclosure, open-space, autotest
Code: 1957541
ManufacturerEaton
Catalog numberIP65PLP3HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233217
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width80mm
Protection classI
Lamp holderNone
Suitable for labelling typeOther
Voltage typeAC
Power supply systemPeripheral (individual battery)
Number of poles4
Battery qualityNiCd
Monitoring equipmentAutomatic self test
Built-in width80mm
Number of lighting heads1
Colour housingGrey
Colour temperature6200 - 6200K
Luminaire with limited surface temperature, sign "D“Yes
Type of control gearLED operating device current-controlled
With remote switch connectionYes
Length340mm
Conductor cross section2.5mm²
Impact strengthIK08
Built-in length340mm
Material coverPlastic, transparent
Height/depth168mm
Nominal voltage220 - 240V
With light sourceYes
Connection typePlug-in connection
Material housingPlastic
Lamp typeLED not exchangeable
Rated ambient temperature according to IEC62722-2-15 - 40°C
Type of wiringSuitable for through wiring
Rated luminous flux according to IEC 62722-2-1510lm
Light distributorFocal lens
Power factor0.5
Built-in height/depth168mm
With pictogramNo
Nominal operation time3 - 3h
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power3.2W
