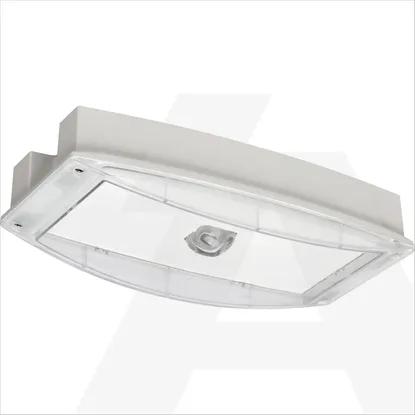

IP65PLPCGS | Emergency luminaire i-P65+ L, PC enclosure, wide-beam, anti-panic / open area
Code: 1957542
ManufacturerEaton
Catalog numberIP65PLPCGS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233118
Details
- •illumination, Cg-s
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Connection typePlug-in connection
Conductor cross section2.5mm²
Colour housingWhite
Width167.9mm
Protection classI
Material housingPlastic
Height/depth80.5mm
Power supply systemCentral (central battery)
Length340mm
Type of control gearLED operating device voltage-controlled
Voltage typeDC
Number of poles3
Lamp typeLED not exchangeable
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Impact strengthIK08
Material coverPlastic, transparent
Colour temperature5000 - 5000K
With remote switch connectionYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Nominal voltage220 - 240V
With pictogramNo
Rated luminous flux according to IEC 62722-2-1770lm
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Light distributorFocal lens
Type of wiringSuitable for through wiring
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
