Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu16A
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq80kA
Number of switches1
Width100mm
Height180mm
Rated operation power at AC-3, 400 V0kW
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of poles3
Depth115mm
Version as emergency stop installationNo
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-23, 400 V7kW
Version as main switchYes
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Colour control elementBlack
Degree of protection (NEMA)12
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V16A
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

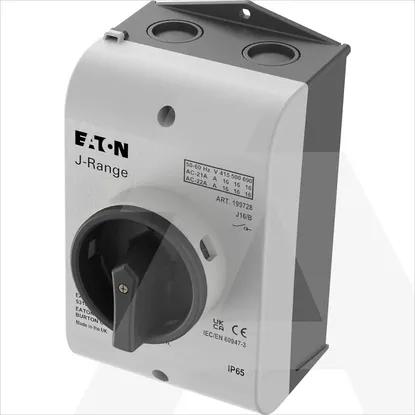

J16/B
