Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Depth115mm
InterlockableYes
Number of switches1
Version as main switchYes
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Version as safety switchYes
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw0.64kA
Rated operating voltage690 - 690V
Height180mm
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V7kW
Number of poles3
Number of auxiliary contacts as normally open contact0
Width100mm
Rated permanent current Iu16A
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Conditioned rated short-circuit current Iq80kA
Colour control elementRed
Suitable for floor mountingYes
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V16A
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Degree of protection (NEMA)12
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

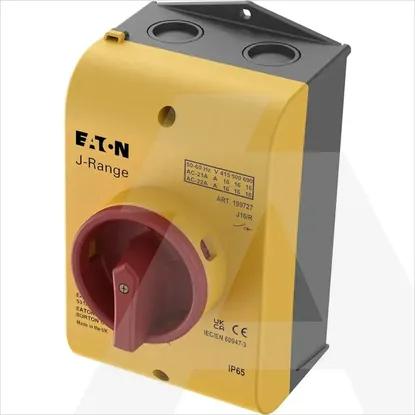

J16/R
