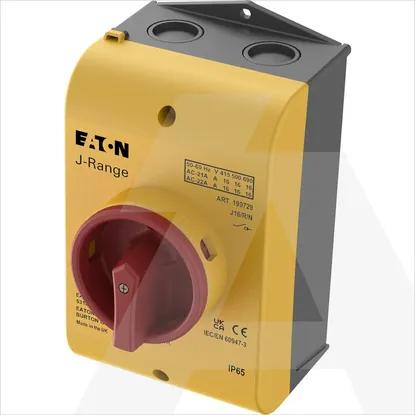

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height180mm
Rated operation power at AC-3, 400 V0kW
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Number of switches1
Number of poles4
Depth115mm
Number of auxiliary contacts as change-over contact0
InterlockableYes
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Width100mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu16A
Version as main switchYes
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Rated short-time withstand current lcw0.64kA
Version as safety switchYes
Rated operation power at AC-23, 400 V7kW
Degree of protection (NEMA)12
Version as reversing switchNo
Rated permanent current at AC-21, 400 V16A
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionComplete device in housing
Colour control elementRed
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
J16/R/N
