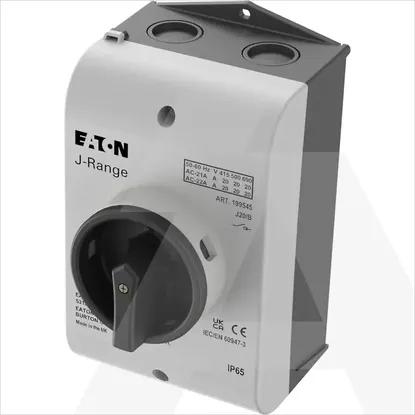

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Width100mm
Depth115mm
Height180mm
InterlockableYes
Rated permanent current Iu20A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq80kA
Degree of protection (IP), front sideIP65
Number of poles3
Version as safety switchNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.64kA
Version as main switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V8kW
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Type of control elementDoor coupling rotary drive
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Colour control elementBlack
Voltage release optionalNo
Suitable for distribution board installationNo
Motor drive integratedNo
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V20A
Device constructionComplete device in housing
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
J20/B
