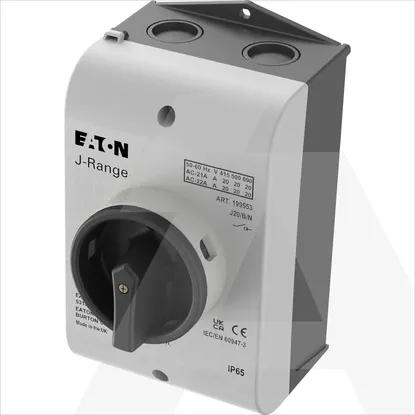

J20/B/N
Code: 1957589
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Number of switches1
Rated operation power at AC-3, 400 V0kW
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V8kW
Rated short-time withstand current lcw0.64kA
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
InterlockableYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Device constructionComplete device in housing
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu20A
Type of control elementDoor coupling rotary drive
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Width100mm
Height180mm
Voltage release optionalNo
Number of poles4
Motor drive integratedNo
Depth115mm
