Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Number of auxiliary contacts as normally open contact0
Height180mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Rated permanent current Iu25A
Number of switches1
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-3, 400 V0kW
Number of poles3
Depth115mm
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.64kA
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Version as safety switchNo
Rated operation power at AC-23, 400 V10kW
Degree of protection (NEMA)12
Suitable for distribution board installationNo
With pre-assembled cablingNo
Version as main switchYes
Rated permanent current at AC-21, 400 V25A
Suitable for floor mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

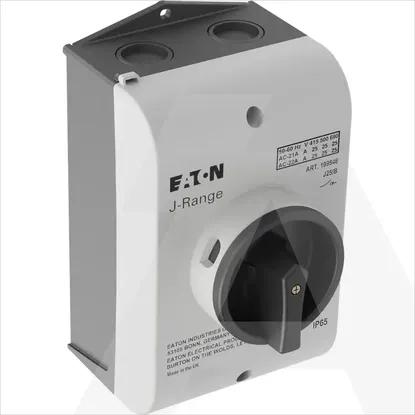

J25/B
