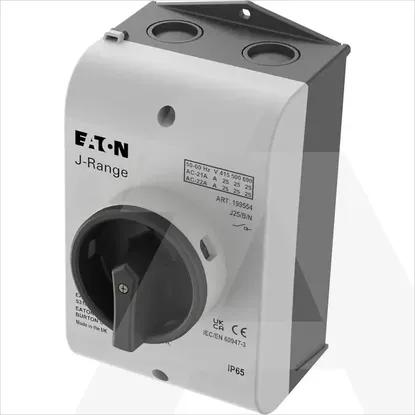

J25/B/N
Code: 1957593
ManufacturerEaton
Catalog number199554
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code5027590552028
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Height180mm
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Depth115mm
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Number of switches1
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.64kA
Version as main switchYes
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V10kW
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Degree of protection (NEMA)12
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V25A
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for floor mountingYes
With pre-assembled cablingNo
Rated permanent current Iu25A
Number of poles4
Max. rated operation voltage Ue AC690V
