Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as normally closed contact0
Depth115mm
Height180mm
Rated permanent current Iu25A
Width100mm
Number of poles3
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Number of switches1
InterlockableYes
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Version as emergency stop installationYes
Version as safety switchYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V10kW
Rated short-time withstand current lcw0.64kA
Device constructionComplete device in housing
Version as main switchYes
Rated permanent current at AC-21, 400 V25A
Suitable for distribution board installationNo
Colour control elementRed
Motor drive optionalNo
Suitable for floor mountingYes
Degree of protection (NEMA)12
Suitable for front mounting centreNo
With pre-assembled cablingNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

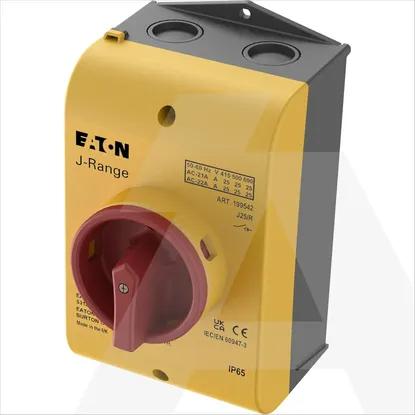

J25/R
