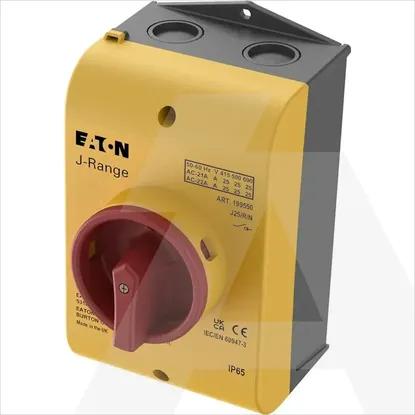

J25/R/N
Code: 1957595
ManufacturerEaton
Catalog number199550
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code5027590552011
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Height180mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Version as emergency stop installationYes
Depth115mm
Number of auxiliary contacts as change-over contact0
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq80kA
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Rated operation power at AC-3, 400 V0kW
Number of switches1
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.64kA
Suitable for front mounting 4-holeNo
Version as safety switchYes
Rated operation power at AC-23, 400 V10kW
Colour control elementRed
Suitable for distribution board installationNo
Degree of protection (NEMA)12
Device constructionComplete device in housing
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V25A
Version as reversing switchNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current Iu25A
Number of poles3
Max. rated operation voltage Ue AC690V
