Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Height180mm
Width100mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq80kA
Depth115mm
Rated operating voltage690 - 690V
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Version as safety switchYes
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingYes
InterlockableYes
Colour control elementRed
Rated operation power at AC-23, 400 V13kW
Rated short-time withstand current lcw0.64kA
Version as main switchYes
Version as emergency stop installationYes
Degree of protection (IP), front sideIP65
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)12
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V32A
Suitable for front mounting centreNo
With pre-assembled cablingNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for distribution board installationNo
Version as reversing switchNo
Rated permanent current Iu32A
Number of poles3
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

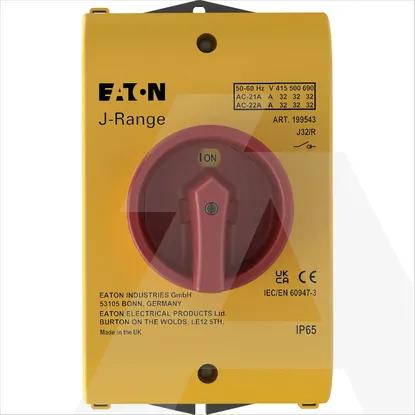

J32/R
