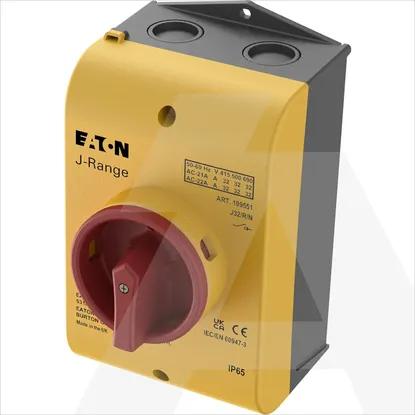

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Number of auxiliary contacts as normally closed contact0
Number of poles4
Rated permanent current Iu32A
Depth115mm
Height180mm
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Type of control elementDoor coupling rotary drive
Version as safety switchYes
Rated operation power at AC-23, 400 V13kW
Number of switches1
Colour control elementRed
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Version as main switchYes
Rated short-time withstand current lcw0.64kA
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
InterlockableYes
Motor drive integratedNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Version as emergency stop installationYes
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V32A
Motor drive optionalNo
Version as reversing switchNo
Voltage release optionalNo
Degree of protection (NEMA)12
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
J32/R/N
