Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height180mm
Width100mm
Depth115mm
Number of poles4
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu40A
InterlockableYes
Number of switches1
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq80kA
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Suitable for front mounting centreNo
Suitable for floor mountingYes
Rated short-time withstand current lcw0.64kA
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V16kW
Colour control elementBlack
Version as main switchYes
Voltage release optionalNo
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V40A
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Device constructionComplete device in housing
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

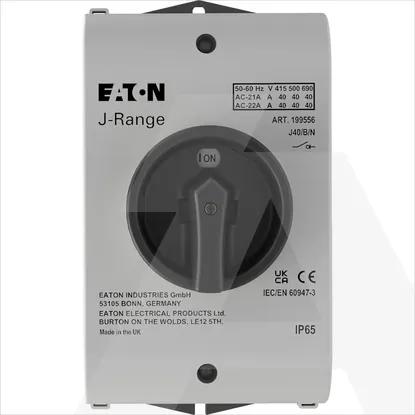

J40/B/N
