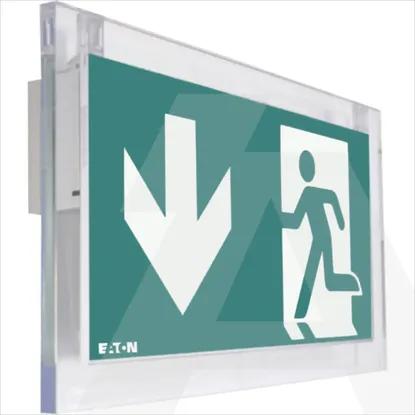

LUM17122 | Emergency sign luminaire CrystalWay 20M CGLine+
Code: 1957799
ManufacturerEaton
Catalog numberLUM17122
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191171223
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Conductor cross section2.5mm²
Length231mm
Lamp holderNone
Type of control gearLED operating device current-controlled
Connection typePlug-in connection
Suitable for labelling typeInsert sheet/plate
Width47mm
Built-in width47mm
Type of indicatorSingle/double-sided
Power supply systemPeripheral (individual battery)
Colour housingWhite
Voltage typeAC
Number of poles2
Impact strengthIK04
Luminaire with limited surface temperature, sign "D“No
Built-in length202mm
Suitable for number of lamps1
Height/depth133mm
Material housingPlastic
Battery qualityLithium-ions
Number of lighting heads24
Nominal voltage230 - 230V
With remote switch connectionYes
Rated luminous flux according to IEC 62722-2-160lm
With light sourceYes
Recognition distance20m
Colour temperature6500 - 6500K
Lamp typeLED not exchangeable
Monitoring equipmentSafety module for monitoring (central feeded system)
With pictogramYes
Type of wiringThrough wiring included
Rated life time L70/B50 at 25 °C100000h
Rated ambient temperature according to IEC62722-2-15 - 40°C
Light distributorDiffuser lens/optic/panel
Luminous flux in standby mode3lm
Material coverPlastic, transparent
Built-in height/depth155mm
Power factor0.7
Nominal operation time1 - 8h
Degree of protection (IP)IP42
Max. system power2.5W
