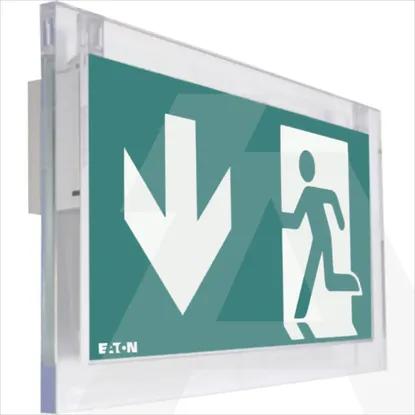

LUM17124 | Emergency sign luminaire CrystalWay 30M CGLine+
Code: 1957803
ManufacturerEaton
Catalog numberLUM17124
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191171247
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Power supply systemPeripheral (individual battery)
Type of indicatorSingle/double-sided
Lamp holderNone
Suitable for labelling typeInsert sheet/plate
Built-in width47mm
Connection typePlug-in connection
Voltage typeAC
Type of control gearLED operating device current-controlled
Colour housingWhite
Width47mm
Protection classII
Length331mm
Conductor cross section2.5mm²
Number of poles2
Impact strengthIK04
Rated luminous flux according to IEC 62722-2-160lm
Lamp typeLED not exchangeable
Number of lighting heads38
Built-in length302mm
With pictogramYes
Suitable for number of lamps1
Light distributorDiffuser lens/optic/panel
Luminaire with limited surface temperature, sign "D“No
Colour temperature6500 - 6500K
Luminous flux in standby mode3lm
Rated ambient temperature according to IEC62722-2-15 - 40°C
Material housingPlastic
Nominal voltage230 - 230V
With remote switch connectionYes
Rated life time L70/B50 at 25 °C100000h
With light sourceYes
Type of wiringThrough wiring included
Recognition distance30m
Material coverPlastic, transparent
Height/depth183mm
Monitoring equipmentSafety module for monitoring (central feeded system)
Battery qualityLithium-ions
Built-in height/depth205mm
Nominal operation time1 - 8h
Power factor0.7
Degree of protection (IP)IP42
Max. system power4.2W
