Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Number of poles4
Colour housingWhite
Protection classII
Outer diameter90mm
Voltage typeAC
Type of control gearNot required
Height/depth75mm
Connection typeScrew connection
Conductor cross section2.5mm²
Width182mm
Lamp holderNone
Built-in diameter64mm
Power supply systemPeripheral (individual battery)
Suitable for labelling typeOther
Length198mm
Material housingPlastic
Type of wiringSuitable for through wiring
Battery qualityNiCd
Rated luminous flux according to IEC 62722-2-1148lm
Light distributorFocal lens
With light sourceYes
With remote switch connectionYes
With pictogramNo
Luminous flux in standby mode148lm
Built-in height/depth63mm
Nominal voltage230 - 240V
Suitable for number of lamps1
Nominal operation time3 - 3h
Monitoring equipmentSafety module for monitoring (central feeded system)
Luminaire with limited surface temperature, sign "D“Yes
Power factor0.72
Impact strengthIK03
Number of lighting heads1
Colour temperature6200 - 6200K
Lamp typeLED not exchangeable
Rated ambient temperature according to IEC62722-2-15 - 35°C
Material coverOther
Mounting methodBuilt-in
Degree of protection (IP)IP44
Max. system power5W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

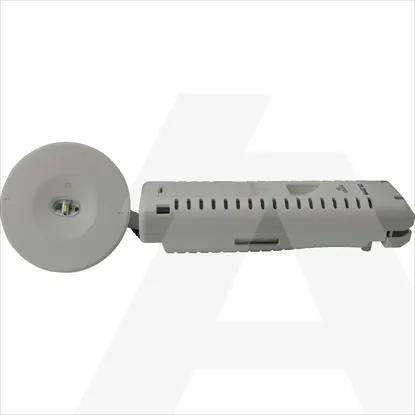

MP2E3HCGL | Emergency luminaire Micropoint 2, 3H Mtd, Escape Route, CGLine+
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of poles
4
Colour housing
White
Protection class
II
Outer diameter
90mm
Voltage type
AC
Type of control gear
Not required
Height/depth
75mm
Connection type
Screw connection
Conductor cross section
2.5mm²
Width
182mm
Lamp holder
None
Built-in diameter
64mm
Power supply system
Peripheral (individual battery)
Suitable for labelling type
Other
Length
198mm
Material housing
Plastic
Type of wiring
Suitable for through wiring
Battery quality
NiCd
Rated luminous flux according to IEC 62722-2-1
148lm
Light distributor
Focal lens
With light source
With remote switch connection
With pictogram
Luminous flux in standby mode
148lm
Built-in height/depth
63mm
Nominal voltage
230 .. 240V
Suitable for number of lamps
1
Nominal operation time
3 .. 3h
Monitoring equipment
Safety module for monitoring (central feeded system)
Luminaire with limited surface temperature, sign "D“
Power factor
0.72
Impact strength
IK03
Number of lighting heads
1
Colour temperature
6200 .. 6200K
Lamp type
LED not exchangeable
Rated ambient temperature according to IEC62722-2-1
5 .. 35°C
Material cover
Other
Mounting method
Built-in
Degree of protection (IP)
IP44
Max. system power
5W
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
