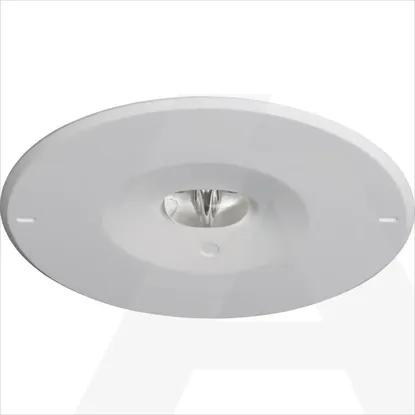

MP2E3HIS | Emergency luminaire Micropoint 2, 3H Mtd, Escape Route, C/W Intellem
Code: 1957844
ManufacturerEaton
Catalog numberMP2E3HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987039628
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width290mm
Conductor cross section2.5mm²
Outer diameter90mm
Protection classII
Colour housingWhite
Lamp holderNone
Connection typeScrew connection
Power supply systemPeripheral (individual battery)
Voltage typeAC
Type of control gearLED operating device current-controlled
Material housingPlastic
Number of poles4
Built-in diameter64mm
Lamp typeLED not exchangeable
Suitable for labelling typeOther
Material coverOther
Number of lighting heads1
Impact strengthIK04
Height/depth30mm
Length230mm
With light sourceYes
Nominal voltage220 - 240V
Battery qualityNiCd
Monitoring equipmentAutomatic self test
Type of wiringSuitable for through wiring
With pictogramNo
Luminous flux in standby mode148lm
Rated ambient temperature according to IEC62722-2-15 - 35°C
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“Yes
Rated luminous flux according to IEC 62722-2-1148lm
Suitable for number of lamps1
Colour temperature6200 - 6200K
Built-in height/depth63mm
Nominal operation time3 - 3h
Power factor0.5
Light distributorFocal lens
Mounting methodBuilt-in
Degree of protection (IP)IP44
Max. system power2.5W
