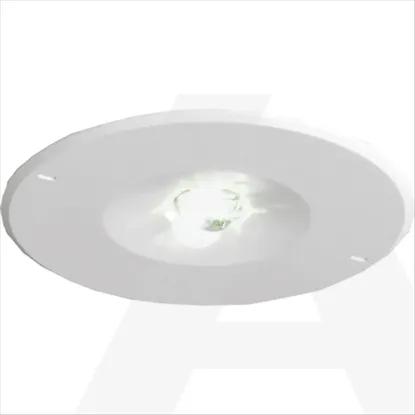

MP2HI3HCGL | Emergency luminaire Micropoint 2 High Output, 3H NM, CGLine+
Code: 1957848
ManufacturerEaton
Catalog numberMP2HI3HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987201612
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Connection typeScrew connection
Lamp holderNone
Width29mm
Voltage typeAC
Conductor cross section2.5mm²
Colour housingWhite
Outer diameter90mm
Nominal voltage220 - 240V
Built-in diameter64mm
Suitable for labelling typeOther
Number of poles4
Type of control gearLED operating device current-controlled
Lamp typeLED not exchangeable
Power supply systemPeripheral (individual battery)
Suitable for number of lamps1
Battery qualityNiCd
Impact strengthIK04
Number of lighting heads1
Height/depth3mm
Length333mm
Material housingPlastic
With light sourceYes
Luminaire with limited surface temperature, sign "D“Yes
Material coverOther
With remote switch connectionYes
With pictogramNo
Rated ambient temperature according to IEC62722-2-15 - 35°C
Rated luminous flux according to IEC 62722-2-1298lm
Type of wiringSuitable for through wiring
Light distributorFocal lens
Monitoring equipmentSafety module for monitoring (central feeded system)
Power factor0.5
Nominal operation time3 - 3h
Colour temperature6200 - 6200K
Built-in height/depth63mm
Mounting methodBuilt-in
Degree of protection (IP)IP20
Max. system power3.9W
