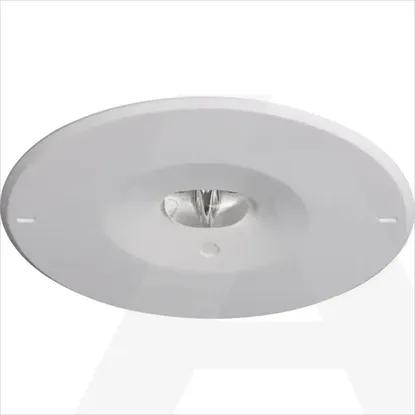

MP2O3HIS | Emergency luminaire Micropoint 2, 3H Mtd. Open Area. C/W Intellem
Code: 1957851
ManufacturerEaton
Catalog numberMP2O3HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987039109
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Outer diameter90mm
Colour housingWhite
Lamp holderNone
Protection classII
Connection typeScrew connection
Voltage typeAC
Width290mm
Conductor cross section2.5mm²
Power supply systemPeripheral (individual battery)
Suitable for labelling typeOther
Material coverOther
Height/depth30mm
Lamp typeLED not exchangeable
Number of poles4
Suitable for number of lamps1
Type of control gearLED operating device current-controlled
Luminaire with limited surface temperature, sign "D“Yes
Length230mm
Number of lighting heads1
With remote switch connectionYes
Impact strengthIK04
Nominal voltage220 - 240V
Battery qualityNiCd
Material housingPlastic
With light sourceYes
Rated luminous flux according to IEC 62722-2-1153lm
With pictogramNo
Luminous flux in standby mode153lm
Monitoring equipmentAutomatic self test
Colour temperature6200 - 6200K
Type of wiringSuitable for through wiring
Built-in diameter64mm
Rated ambient temperature according to IEC62722-2-15 - 35°C
Power factor0.5
Light distributorFocal lens
Nominal operation time3 - 3h
Built-in height/depth63mm
Mounting methodBuilt-in
Degree of protection (IP)IP44
Max. system power2.5W
