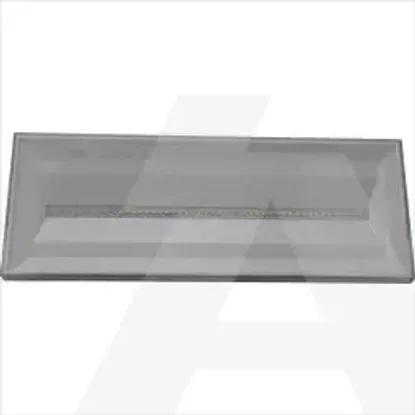

NEXI1000-AT | Emergency luminaire NexiTech LED 1000lm/1h, 800lm/1,5h Autotest
Code: 1957941
ManufacturerEaton
Catalog numberNEXI1000-AT
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191614683
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Width110mm
Lamp holderNone
Built-in width95mm
Colour housingWhite
Material housingPlastic
Monitoring equipmentAutomatic self test
Conductor cross section2.5mm²
Lamp typeLED not exchangeable
Battery qualityNiCd
Luminaire with limited surface temperature, sign "D“No
Impact strengthIK03
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
With remote switch connectionYes
Connection typePlug-in connection
Height/depth40mm
Length290mm
Suitable for labelling typeInsert sheet/plate
Number of poles2
Number of lighting heads48
Nominal voltage220 - 240V
Built-in length272mm
Suitable for number of lamps1
Material coverPlastic, transparent
With light sourceYes
Voltage typeAC
Colour temperature5053 - 5053K
Rated ambient temperature according to IEC62722-2-15 - 30°C
Recognition distance20m
Nominal operation time1 - 1h
Luminous flux in standby mode60lm
Built-in height/depth96mm
Power factor0.41
Rated luminous flux according to IEC 62722-2-11000lm
With pictogramNo
Light distributorReflector
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.6W
