Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Number of poles2
Colour housingWhite
Conductor cross section2.5mm²
Protection classII
Length308mm
Suitable for labelling typeInsert sheet/plate
Power supply systemPeripheral (individual battery)
Lamp holderNone
Voltage typeAC
Material housingPlastic
Built-in length272mm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Battery qualityNiCd
Width125mm
Connection typePlug-in connection
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
With light sourceYes
Material coverPlastic, transparent
Height/depth53mm
Built-in width95mm
Type of control gearLED operating device current-controlled
Number of lighting heads48
Impact strengthIK07
Max. system power3.6W
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps1
Built-in height/depth96mm
Power factor0.41
Rated luminous flux according to IEC 62722-2-11000lm
Luminous flux in standby mode60lm
With remote switch connectionYes
Recognition distance20m
With pictogramNo
Light distributorReflector
Colour temperature5053 - 5053K
Rated ambient temperature according to IEC62722-2-15 - 30°C
Monitoring equipmentAutomatic self test
Nominal operation time1 - 1h
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

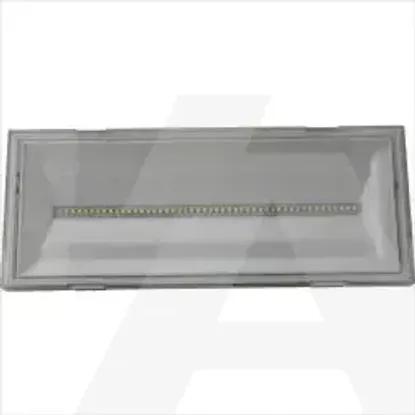

NEXI1000-AT-IP | Emergency luminaire NexiTech LED 1000lm/1h, 800lm/1,5h Autotest IP65
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of poles
2
Colour housing
White
Conductor cross section
2.5mm²
Protection class
II
Length
308mm
Suitable for labelling type
Insert sheet/plate
Power supply system
Peripheral (individual battery)
Lamp holder
None
Voltage type
AC
Material housing
Plastic
Built-in length
272mm
Mounting method
Surface mounting/recessed mounting
Degree of protection (IP)
IP65
Battery quality
NiCd
Width
125mm
Connection type
Plug-in connection
Lamp type
LED not exchangeable
Nominal voltage
220 .. 240V
With light source
Material cover
Plastic, transparent
Height/depth
53mm
Built-in width
95mm
Type of control gear
LED operating device current-controlled
Number of lighting heads
48
Impact strength
IK07
Max. system power
3.6W
Luminaire with limited surface temperature, sign "D“
Suitable for number of lamps
1
Built-in height/depth
96mm
Power factor
0.41
Rated luminous flux according to IEC 62722-2-1
1000lm
Luminous flux in standby mode
60lm
With remote switch connection
Recognition distance
20m
With pictogram
Light distributor
Reflector
Colour temperature
5053 .. 5053K
Rated ambient temperature according to IEC62722-2-1
5 .. 30°C
Monitoring equipment
Automatic self test
Nominal operation time
1 .. 1h
