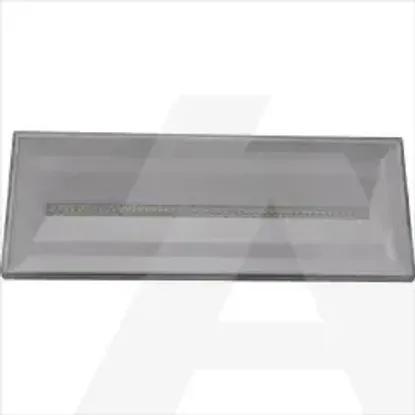

NEXI1000-CGL | Emergency luminaire NexiTech LED 1000lm/1h 800lm/1h30 CGLine+
Code: 1957943
ManufacturerEaton
Catalog numberNEXI1000-CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191603656
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Width110mm
Conductor cross section2.5mm²
Lamp holderNone
Colour housingWhite
Connection typePlug-in connection
Voltage typeAC
Suitable for labelling typeInsert sheet/plate
Built-in width95mm
Height/depth40mm
Number of poles2
Length290mm
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
Material housingPlastic
Built-in length272mm
Lamp typeLED not exchangeable
Material coverPlastic, transparent
With light sourceYes
Number of lighting heads48
Nominal voltage220 - 240V
Battery qualityNiCd
Impact strengthIK03
Monitoring equipmentSafety module for monitoring (central feeded system)
Luminous flux in standby mode60lm
Suitable for number of lamps1
With remote switch connectionYes
Light distributorReflector
Nominal operation time1 - 1h
With pictogramNo
Recognition distance20m
Rated luminous flux according to IEC 62722-2-11000lm
Built-in height/depth96mm
Luminaire with limited surface temperature, sign "D“No
Rated ambient temperature according to IEC62722-2-15 - 30°C
Colour temperature5053 - 5053K
Power factor0.41
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.6W
