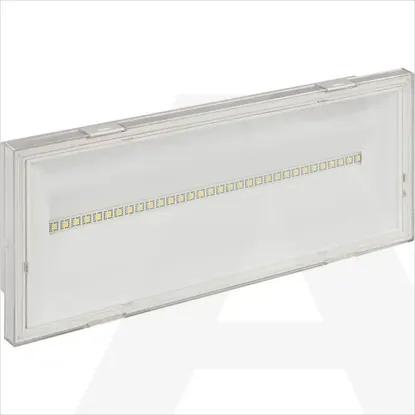

NEXI1000-CGL-IP | Emergency luminaire NexiTech LED 1000lm/1h 800lm/1h30 CGLine+ IP65
Code: 1957946
ManufacturerEaton
Catalog numberNEXI1000-CGL-IP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191603663
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Width125mm
Lamp holderNone
Conductor cross section2.5mm²
Length308mm
Voltage typeAC
Protection classII
Height/depth53mm
Material housingPlastic
Colour housingWhite
Power supply systemPeripheral (individual battery)
Connection typePlug-in connection
Type of control gearLED operating device current-controlled
Suitable for labelling typeInsert sheet/plate
Built-in width95mm
Number of poles2
Material coverPlastic, transparent
Lamp typeLED not exchangeable
Impact strengthIK07
Number of lighting heads48
Built-in length272mm
Nominal operation time1 - 1h
Rated ambient temperature according to IEC62722-2-15 - 30°C
Recognition distance20m
Power factor0.41
Nominal voltage220 - 240V
Suitable for number of lamps1
Built-in height/depth96mm
With light sourceYes
Luminous flux in standby mode60lm
Monitoring equipmentSafety module for monitoring (central feeded system)
Battery qualityNiCd
Rated luminous flux according to IEC 62722-2-11000lm
Light distributorReflector
Colour temperature5053 - 5053K
With remote switch connectionYes
With pictogramNo
Luminaire with limited surface temperature, sign "D“No
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power3.6W
