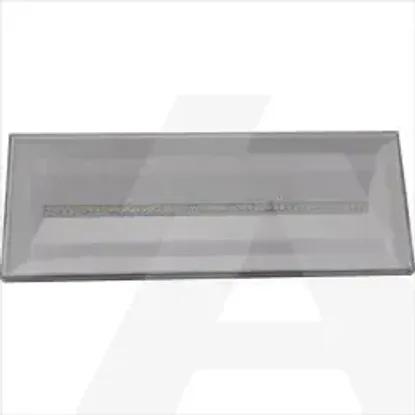

NEXI100-AT | Emergency luminaire NexiTech LED 100LM 1,5h Autotest
Code: 1957949
ManufacturerEaton
Catalog numberNEXI100-AT
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600150
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Voltage typeAC
Connection typePlug-in connection
Width110mm
Protection classII
Conductor cross section2.5mm²
Power supply systemPeripheral (individual battery)
Colour housingWhite
Lamp holderNone
Suitable for labelling typeInsert sheet/plate
Number of poles2
Type of control gearLED operating device current-controlled
Built-in width95mm
Length290mm
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Height/depth40mm
Material housingPlastic
Colour temperature5053 - 5053K
Recognition distance20m
Monitoring equipmentAutomatic self test
Number of lighting heads16
With light sourceYes
Suitable for number of lamps1
With remote switch connectionYes
Built-in length272mm
Battery qualityNiCd
Impact strengthIK03
Material coverPlastic, transparent
Luminaire with limited surface temperature, sign "D“No
Nominal operation time1.5 - 1.5h
Rated luminous flux according to IEC 62722-2-1100lm
Luminous flux in standby mode70lm
Light distributorReflector
Rated ambient temperature according to IEC62722-2-15 - 30°C
With pictogramNo
Built-in height/depth96mm
Power factor0.55
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power0.65W
