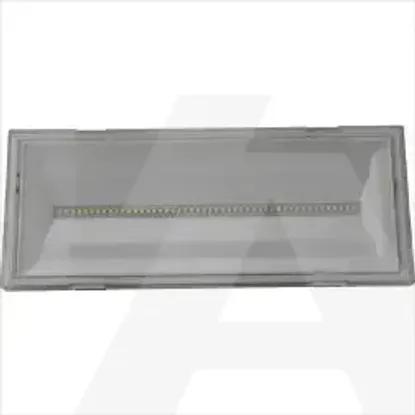

NEXI100-AT-IP | Emergency luminaire NexiTech LED 100LM 1,5h IP65 Autotest
Code: 1957952
ManufacturerEaton
Catalog numberNEXI100-AT-IP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191603076
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in width95mm
Voltage typeAC
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
Conductor cross section2.5mm²
Protection classII
Width125mm
Lamp holderNone
Material coverPlastic, transparent
Length308mm
Built-in length272mm
Number of lighting heads16
Number of poles2
Connection typePlug-in connection
Height/depth53mm
Colour housingWhite
Suitable for labelling typeInsert sheet/plate
Impact strengthIK07
Material housingPlastic
With light sourceYes
Battery qualityNiCd
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Monitoring equipmentAutomatic self test
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps1
With pictogramNo
Colour temperature5053 - 5053K
Recognition distance20m
With remote switch connectionYes
Rated luminous flux according to IEC 62722-2-1100lm
Luminous flux in standby mode70lm
Power factor0.55
Rated ambient temperature according to IEC62722-2-15 - 30°C
Nominal operation time1.5 - 1.5h
Light distributorReflector
Built-in height/depth96mm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power0.65W
