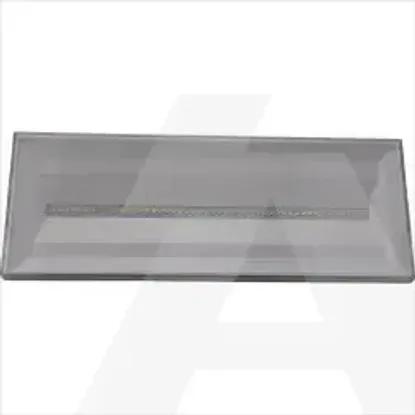

NEXI150-3H-AT | Emergency luminaire NexiTech LED 150LM 3H Autotest
Code: 1957954
ManufacturerEaton
Catalog numberNEXI150-3H-AT
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600259
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Protection classII
Width110mm
Lamp holderNone
Type of control gearLED operating device current-controlled
Length290mm
Voltage typeAC
Power supply systemPeripheral (individual battery)
Connection typePlug-in connection
Number of poles2
Colour housingWhite
Conductor cross section2.5mm²
Built-in width95mm
Suitable for labelling typeInsert sheet/plate
Built-in length272mm
Material coverPlastic, transparent
Impact strengthIK03
Nominal voltage220 - 240V
Material housingPlastic
Number of lighting heads16
Lamp typeLED not exchangeable
Battery qualityNiCd
Height/depth40mm
With light sourceYes
Luminaire with limited surface temperature, sign "D“No
Monitoring equipmentAutomatic self test
Suitable for number of lamps1
With remote switch connectionYes
Rated luminous flux according to IEC 62722-2-1150lm
Colour temperature5053 - 5053K
With pictogramNo
Light distributorReflector
Luminous flux in standby mode60lm
Nominal operation time3 - 3h
Rated ambient temperature according to IEC62722-2-15 - 30°C
Recognition distance20m
Built-in height/depth96mm
Power factor0.55
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.1W
