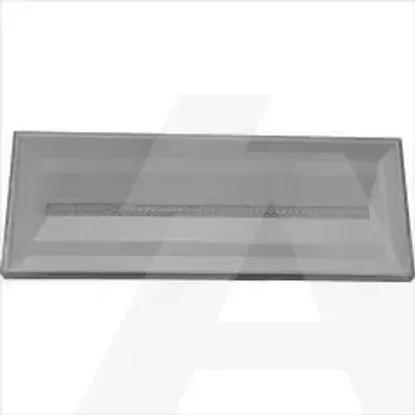

NEXI150-3H-CGL | Emergency luminaire NexiTech LED 150LM 3H CGLine+
Code: 1957958
ManufacturerEaton
Catalog numberNEXI150-3H-CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191602482
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Width110mm
With remote switch connectionYes
Conductor cross section2.5mm²
Luminaire with limited surface temperature, sign "D“No
Voltage typeAC
Suitable for labelling typeInsert sheet/plate
Colour housingWhite
Power supply systemPeripheral (individual battery)
Built-in width95mm
Connection typePlug-in connection
With light sourceYes
Lamp holderNone
Nominal voltage220 - 240V
Material coverPlastic, transparent
Built-in length272mm
Material housingPlastic
Type of control gearLED operating device current-controlled
Battery qualityNiCd
Lamp typeLED not exchangeable
Impact strengthIK03
Number of poles2
Suitable for number of lamps1
Number of lighting heads48
Height/depth40mm
Length290mm
Rated luminous flux according to IEC 62722-2-1150lm
Light distributorReflector
Colour temperature5053 - 5053K
Power factor0.55
Monitoring equipmentSafety module for monitoring (central feeded system)
Built-in height/depth96mm
Nominal operation time3 - 3h
Recognition distance20m
Rated ambient temperature according to IEC62722-2-15 - 30°C
With pictogramNo
Luminous flux in standby mode60lm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.6W
