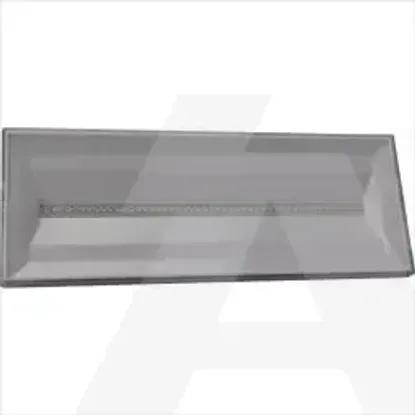

NEXI150-CGL | Emergency luminaire NexiTech LED 150LM 1h30 CGLine+
Code: 1957968
ManufacturerEaton
Catalog numberNEXI150-CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191602468
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Lamp holderNone
Connection typePlug-in connection
Voltage typeAC
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
Conductor cross section2.5mm²
Colour housingWhite
Width110mm
Material coverPlastic, transparent
Impact strengthIK03
Number of poles2
Number of lighting heads48
Nominal voltage220 - 240V
Height/depth40mm
Lamp typeLED not exchangeable
Built-in length272mm
Material housingPlastic
Built-in width95mm
Length290mm
Battery qualityNiCd
Suitable for labelling typeInsert sheet/plate
With light sourceYes
Protection classII
With remote switch connectionYes
With pictogramNo
Light distributorReflector
Luminous flux in standby mode60lm
Rated ambient temperature according to IEC62722-2-15 - 30°C
Nominal operation time1.5 - 1.5h
Suitable for number of lamps1
Rated luminous flux according to IEC 62722-2-1150lm
Monitoring equipmentSafety module for monitoring (central feeded system)
Colour temperature5053 - 5053K
Recognition distance20m
Built-in height/depth96mm
Power factor0.52
Luminaire with limited surface temperature, sign "D“No
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.6W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NEXI150-CGL | Emergency luminaire NexiTech LED 150LM 1h30 CGLine+
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Lamp holder
None
Connection type
Plug-in connection
Voltage type
AC
Power supply system
Peripheral (individual battery)
Type of control gear
LED operating device current-controlled
Conductor cross section
2.5mm²
Colour housing
White
Width
110mm
Material cover
Plastic, transparent
Impact strength
IK03
Number of poles
2
Number of lighting heads
48
Nominal voltage
220 .. 240V
Height/depth
40mm
Lamp type
LED not exchangeable
Built-in length
272mm
Material housing
Plastic
Built-in width
95mm
Length
290mm
Battery quality
NiCd
Suitable for labelling type
Insert sheet/plate
With light source
Protection class
II
With remote switch connection
With pictogram
Light distributor
Reflector
Luminous flux in standby mode
60lm
Rated ambient temperature according to IEC62722-2-1
5 .. 30°C
Nominal operation time
1.5 .. 1.5h
Suitable for number of lamps
1
Rated luminous flux according to IEC 62722-2-1
150lm
Monitoring equipment
Safety module for monitoring (central feeded system)
Colour temperature
5053 .. 5053K
Recognition distance
20m
Built-in height/depth
96mm
Power factor
0.52
Luminaire with limited surface temperature, sign "D“
Mounting method
Surface mounting/recessed mounting
Degree of protection (IP)
IP40
Max. system power
3.6W
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
