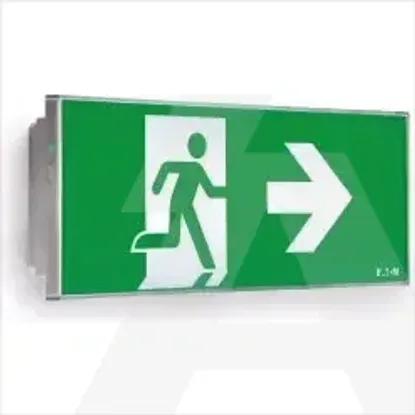

NEXI1HIA-CGL | Emergency luminaire NexiTech LED with function IA 1H IP40 CGLine+
Code: 1957973
ManufacturerEaton
Catalog numberNEXI1HIA-CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191609276
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Width110mm
Height/depth40mm
Connection typePlug-in connection
Colour housingWhite
Number of poles2
Length290mm
Suitable for labelling typeInsert sheet/plate
Lamp holderNone
Voltage typeAC
Built-in width95mm
Protection classII
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
Lamp typeLED not exchangeable
Material housingPlastic
Number of lighting heads48
Material coverPlastic, transparent
Built-in length272mm
Impact strengthIK03
Battery qualityNiCd
Nominal voltage220 - 240V
Luminous flux in standby mode80lm
Power factor0.41
With remote switch connectionYes
With pictogramYes
Rated luminous flux according to IEC 62722-2-180lm
Recognition distance20m
Built-in height/depth96mm
With light sourceYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Nominal operation time1 - 1h
Light distributorReflector
Colour temperature5053 - 5053K
Luminaire with limited surface temperature, sign "D“No
Rated ambient temperature according to IEC62722-2-15 - 30°C
Suitable for number of lamps1
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.9W
