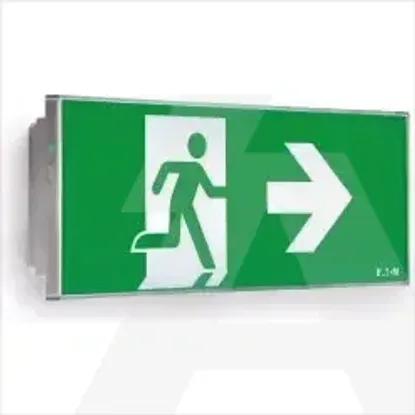

NEXI1HIACGLIP | Emergency luminaire NexiTech LED with function IA 1H IP65 CGLine+
Code: 1957974
ManufacturerEaton
Catalog numberNEXI1HIACGLIP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191609269
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Voltage typeAC
Connection typePlug-in connection
Width125mm
Conductor cross section2.5mm²
Colour housingWhite
Lamp holderNone
Length308mm
Rated luminous flux according to IEC 62722-2-180lm
Power supply systemPeripheral (individual battery)
Built-in width95mm
Type of control gearLED operating device current-controlled
With remote switch connectionYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Number of poles2
Built-in length272mm
Colour temperature5053 - 5053K
Number of lighting heads48
Suitable for number of lamps1
Material housingPlastic
Recognition distance20m
Luminaire with limited surface temperature, sign "D“No
Impact strengthIK07
Suitable for labelling typeInsert sheet/plate
With light sourceYes
Height/depth53mm
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Material coverPlastic, transparent
Battery qualityNiCd
Luminous flux in standby mode80lm
Power factor0.41
Nominal operation time1 - 1h
Built-in height/depth96mm
Rated ambient temperature according to IEC62722-2-15 - 30°C
Light distributorReflector
With pictogramYes
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power3.9W
