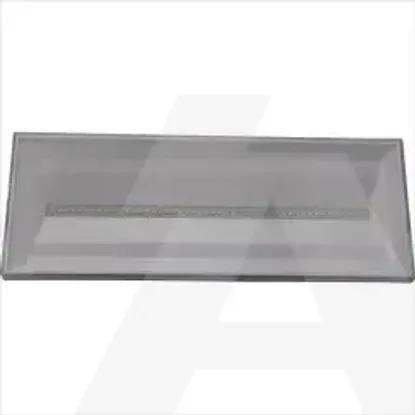

NEXI250-AT | Emergency luminaire NexiTech LED 250LM 1,5h Autotest
Code: 1957977
ManufacturerEaton
Catalog numberNEXI250-AT
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600198
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width110mm
Connection typePlug-in connection
Lamp holderNone
Conductor cross section2.5mm²
Protection classII
Number of poles2
Suitable for labelling typeInsert sheet/plate
Battery qualityNiCd
Impact strengthIK03
Built-in width95mm
Length290mm
Power supply systemPeripheral (individual battery)
Colour housingWhite
Voltage typeAC
With light sourceYes
Type of control gearLED operating device current-controlled
Material coverPlastic, transparent
Lamp typeLED not exchangeable
Number of lighting heads48
Nominal voltage220 - 240V
Suitable for number of lamps1
Built-in length272mm
Material housingPlastic
Height/depth40mm
Luminaire with limited surface temperature, sign "D“No
Colour temperature5053 - 5053K
Recognition distance20m
Monitoring equipmentAutomatic self test
With remote switch connectionYes
With pictogramNo
Luminous flux in standby mode60lm
Power factor0.55
Light distributorReflector
Built-in height/depth96mm
Rated luminous flux according to IEC 62722-2-1250lm
Rated ambient temperature according to IEC62722-2-15 - 30°C
Nominal operation time1.5 - 1.5h
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.6W
