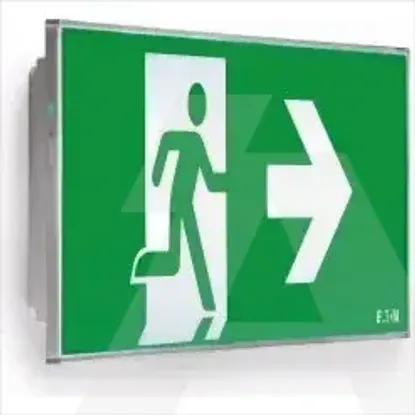

NEXI3HIA-CGL | Emergency luminaire NexiTech LED with function IA 3H IP40 CGLine+
Code: 1957989
ManufacturerEaton
Catalog numberNEXI3HIA-CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191609283
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Connection typePlug-in connection
Lamp holderNone
Built-in width95mm
Protection classII
Length290mm
Height/depth40mm
Voltage typeAC
Conductor cross section2.5mm²
Type of control gearLED operating device current-controlled
Lamp typeLED not exchangeable
Number of lighting heads48
Material housingPlastic
Built-in length272mm
Colour housingWhite
Battery qualityNiCd
Number of poles2
Suitable for labelling typeInsert sheet/plate
Impact strengthIK03
Nominal voltage220 - 240V
Width110mm
Material coverPlastic, transparent
Power supply systemPeripheral (individual battery)
Monitoring equipmentSafety module for monitoring (central feeded system)
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps1
Recognition distance20m
With light sourceYes
Power factor0.41
Built-in height/depth96mm
With pictogramYes
Nominal operation time3 - 3h
Rated luminous flux according to IEC 62722-2-180lm
With remote switch connectionYes
Colour temperature5053 - 5053K
Rated ambient temperature according to IEC62722-2-15 - 30°C
Luminous flux in standby mode80lm
Light distributorReflector
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.9W
