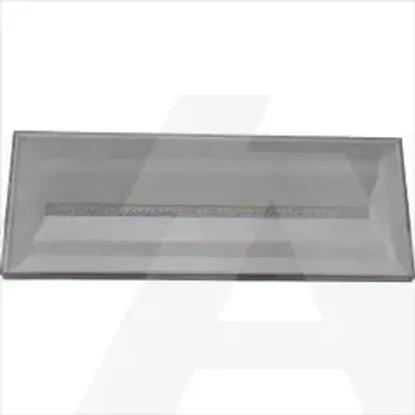

NEXI400-AT | Emergency luminaire NexiTech LED 400LM 1,5h Autotest
Code: 1957991
ManufacturerEaton
Catalog numberNEXI400-AT
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600273
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Width110mm
Protection classII
Lamp holderNone
Voltage typeAC
Connection typePlug-in connection
Power supply systemPeripheral (individual battery)
Number of poles2
Colour housingWhite
Suitable for labelling typeInsert sheet/plate
Type of control gearLED operating device current-controlled
Built-in width95mm
Length290mm
Built-in length272mm
Material housingPlastic
Number of lighting heads48
Height/depth40mm
Luminaire with limited surface temperature, sign "D“No
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Impact strengthIK03
Material coverPlastic, transparent
With light sourceYes
Built-in height/depth96mm
Colour temperature5053 - 5053K
With remote switch connectionYes
Suitable for number of lamps1
Luminous flux in standby mode60lm
With pictogramNo
Recognition distance20m
Rated luminous flux according to IEC 62722-2-1400lm
Nominal operation time1.5 - 1.5h
Light distributorReflector
Rated ambient temperature according to IEC62722-2-15 - 30°C
Battery qualityNiCd
Monitoring equipmentAutomatic self test
Power factor0.6
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.2W
