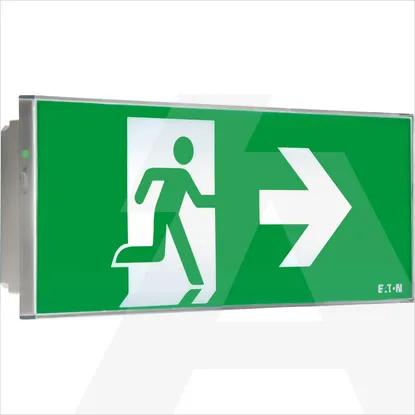

NEXI400-CGL-IP | Emergency luminaire NexiTech LED 400LM 1h30 IP65 CGLine+
Code: 1957999
ManufacturerEaton
Catalog numberNEXI400-CGL-IP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191602802
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Voltage typeAC
Protection classII
Conductor cross section2.5mm²
Colour housingWhite
Power supply systemPeripheral (individual battery)
Lamp holderNone
Width125mm
Type of control gearLED operating device current-controlled
Connection typePlug-in connection
Material housingPlastic
Suitable for labelling typeInsert sheet/plate
Built-in width95mm
Number of poles2
Height/depth53mm
Length308mm
Lamp typeLED not exchangeable
Battery qualityNiCd
Number of lighting heads48
Built-in length272mm
Material coverPlastic, transparent
Monitoring equipmentSafety module for monitoring (central feeded system)
Impact strengthIK07
Suitable for number of lamps1
Nominal voltage220 - 240V
Rated luminous flux according to IEC 62722-2-1400lm
Colour temperature5053 - 5053K
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
With remote switch connectionYes
Recognition distance20m
Luminous flux in standby mode60lm
Power factor0.6
Rated ambient temperature according to IEC62722-2-15 - 30°C
Light distributorReflector
Built-in height/depth96mm
With pictogramNo
Nominal operation time1.5 - 1.5h
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power3.6W
