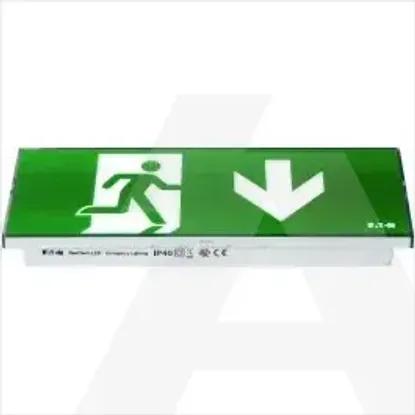

NEXI-D-AT | Emergency luminaire Nexitech LED 1h30 at with doors area illumination
Code: 1958010
ManufacturerEaton
Catalog numberNEXI-D-AT
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600297
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width110mm
Lamp holderNone
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
Number of poles2
Connection typePlug-in connection
Colour housingWhite
Conductor cross section2.5mm²
Built-in width95mm
Suitable for labelling typeInsert sheet/plate
Protection classII
Voltage typeAC
Height/depth40mm
Length290mm
Lamp typeLED not exchangeable
Material coverPlastic, transparent
Number of lighting heads48
Nominal voltage220 - 240V
Impact strengthIK03
Monitoring equipmentAutomatic self test
Battery qualityNiCd
Material housingPlastic
Luminaire with limited surface temperature, sign "D“No
Built-in length272mm
With pictogramNo
Rated luminous flux according to IEC 62722-2-180lm
Colour temperature5053 - 5053K
With light sourceYes
With remote switch connectionYes
Light distributorReflector
Built-in height/depth96mm
Luminous flux in standby mode60lm
Power factor0.55
Nominal operation time1.5 - 1.5h
Recognition distance20m
Rated ambient temperature according to IEC62722-2-15 - 30°C
Suitable for number of lamps1
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.6W
