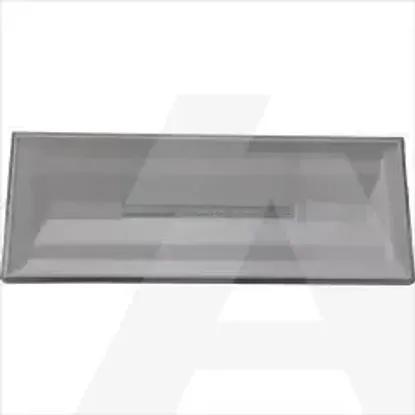

NXL100 | Emergency luminaire NexiLite 100LM 1H NM
Code: 1958088
ManufacturerEaton
Catalog numberNXL100
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600884
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Type of control gearLED operating device current-controlled
Number of poles2
Built-in width95mm
Colour housingWhite
Suitable for labelling typeInsert sheet/plate
Lamp holderNone
Protection classII
Width110mm
Connection typePlug-in connection
Voltage typeAC
Power supply systemPeripheral (individual battery)
Length290mm
Suitable for number of lamps1
Height/depth40mm
Number of lighting heads12
Rated ambient temperature according to IEC62722-2-15 - 30°C
With light sourceYes
Impact strengthIK03
Light distributorReflector
Nominal voltage230 - 230V
Recognition distance20m
With pictogramNo
Nominal operation time1 - 1h
Monitoring equipmentNone
Luminaire with limited surface temperature, sign "D“No
Lamp typeLED not exchangeable
Colour temperature5700 - 5700K
Rated luminous flux according to IEC 62722-2-1100lm
Material housingPlastic
Built-in length272mm
Material coverPlastic, transparent
Battery qualityNiCd
Built-in height/depth96mm
Power factor0.442
With remote switch connectionYes
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power1.2W
