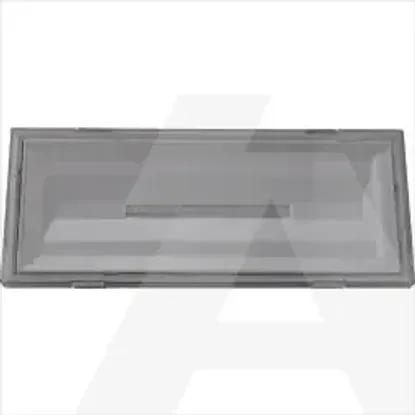

NXL100-IP | Emergency luminaire NexiLite 100LM 1H IP65
Code: 1958089
ManufacturerEaton
Catalog numberNXL100-IP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191603137
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Colour housingWhite
Power supply systemPeripheral (individual battery)
Built-in width95mm
Suitable for labelling typeInsert sheet/plate
Protection classII
Type of control gearLED operating device current-controlled
Lamp holderNone
Voltage typeAC
Width125mm
Conductor cross section2.5mm²
Length308mm
Number of poles2
Connection typePlug-in connection
Lamp typeLED not exchangeable
With remote switch connectionYes
Colour temperature5700 - 5700K
With pictogramNo
Number of lighting heads12
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Rated luminous flux according to IEC 62722-2-1100lm
Material housingPlastic
Rated ambient temperature according to IEC62722-2-15 - 30°C
Nominal operation time1 - 1h
Light distributorReflector
Height/depth53mm
Suitable for number of lamps1
Material coverPlastic, transparent
Battery qualityNiCd
Built-in length272mm
Monitoring equipmentNone
Recognition distance20m
Impact strengthIK07
Nominal voltage230 - 230V
Power factor0.442
Built-in height/depth96mm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power1.2W
