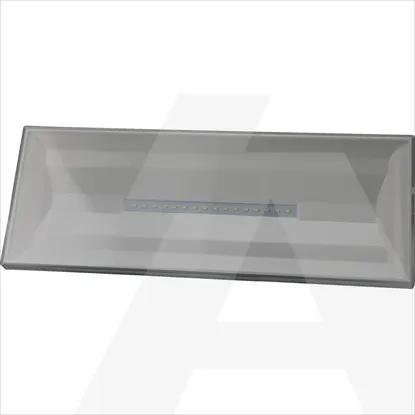

NXL150 | Emergency luminaire NexiLite 150LM 1H NM
Code: 1958090
ManufacturerEaton
Catalog numberNXL150
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600907
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Lamp holderNone
Width110mm
Connection typePlug-in connection
Conductor cross section2.5mm²
Protection classII
Colour housingWhite
Built-in width95mm
Power supply systemPeripheral (individual battery)
Material housingPlastic
Height/depth40mm
Material coverPlastic, transparent
Length290mm
Number of lighting heads12
Suitable for labelling typeInsert sheet/plate
Voltage typeAC
Number of poles2
Built-in length272mm
Lamp typeLED not exchangeable
Type of control gearLED operating device current-controlled
Battery qualityNiCd
Monitoring equipmentNone
Suitable for number of lamps1
Nominal voltage230 - 230V
Recognition distance20m
Impact strengthIK03
Colour temperature5700 - 5700K
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Power factor0.442
Built-in height/depth96mm
With pictogramNo
Light distributorReflector
Rated ambient temperature according to IEC62722-2-15 - 30°C
Nominal operation time1 - 1h
Rated luminous flux according to IEC 62722-2-1150lm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power1.2W
