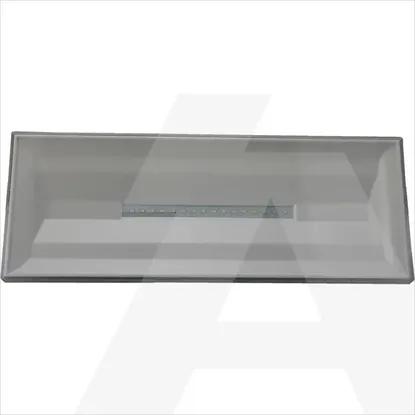

NXL150-3H | Emergency luminaire NexiLite 150LM 3H Nm/m
Code: 1958091
ManufacturerEaton
Catalog numberNXL150-3H
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600945
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in width95mm
Suitable for labelling typeInsert sheet/plate
Voltage typeAC
Colour housingWhite
Power supply systemPeripheral (individual battery)
Conductor cross section2.5mm²
Protection classII
Width110mm
Type of control gearLED operating device current-controlled
Connection typePlug-in connection
Number of poles2
Lamp holderNone
Length290mm
Height/depth40mm
Number of lighting heads12
With pictogramNo
Battery qualityNiCd
Recognition distance20m
Monitoring equipmentNone
Rated luminous flux according to IEC 62722-2-1150lm
Material housingPlastic
Built-in length272mm
Light distributorReflector
Material coverPlastic, transparent
Nominal operation time3 - 3h
Lamp typeLED not exchangeable
Luminaire with limited surface temperature, sign "D“No
Luminous flux in standby mode60lm
With light sourceYes
Colour temperature5053 - 5053K
With remote switch connectionYes
Nominal voltage230 - 230V
Suitable for number of lamps1
Impact strengthIK03
Built-in height/depth96mm
Rated ambient temperature according to IEC62722-2-15 - 30°C
Power factor0.442
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power3.1W
