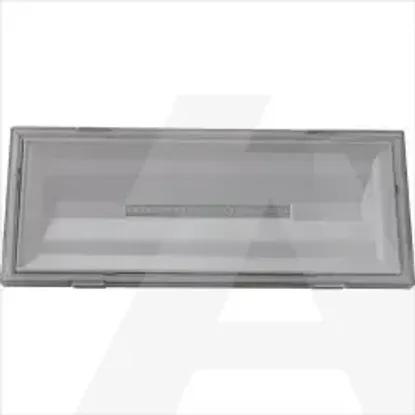

NXL150-IP | Emergency luminaire NexiLite 150LM 1H IP65
Code: 1958092
ManufacturerEaton
Catalog numberNXL150-IP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191603144
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Protection classII
Colour housingWhite
Lamp holderNone
Conductor cross section2.5mm²
Width125mm
Connection typePlug-in connection
Height/depth53mm
Type of control gearLED operating device current-controlled
Power supply systemPeripheral (individual battery)
Battery qualityNiCd
Number of poles2
Material coverPlastic, transparent
Length308mm
Voltage typeAC
Number of lighting heads12
With remote switch connectionYes
Recognition distance20m
Impact strengthIK07
Built-in width95mm
Material housingPlastic
Suitable for labelling typeInsert sheet/plate
Monitoring equipmentNone
Suitable for number of lamps1
With light sourceYes
Built-in length272mm
Luminaire with limited surface temperature, sign "D“No
Lamp typeLED not exchangeable
Nominal voltage230 - 230V
Colour temperature5700 - 5700K
With pictogramNo
Built-in height/depth96mm
Rated luminous flux according to IEC 62722-2-1150lm
Power factor0.442
Nominal operation time1 - 1h
Light distributorReflector
Rated ambient temperature according to IEC62722-2-15 - 30°C
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power1.2W
