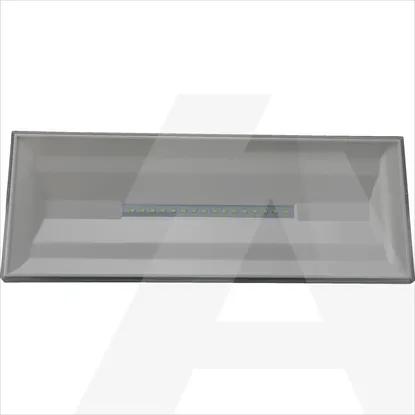

NXL250 | Emergency luminaire NexiLite 250LM 1H NM
Code: 1958093
ManufacturerEaton
Catalog numberNXL250
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191600921
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Width110mm
Built-in width95mm
Suitable for labelling typeInsert sheet/plate
Protection classII
Colour housingWhite
Type of control gearLED operating device current-controlled
Voltage typeAC
Connection typePlug-in connection
Power supply systemPeripheral (individual battery)
Conductor cross section2.5mm²
Lamp holderNone
Height/depth40mm
Material housingPlastic
Number of poles2
Nominal voltage230 - 230V
Suitable for number of lamps1
Battery qualityNiCd
Material coverPlastic, transparent
Built-in length272mm
Impact strengthIK03
Length290mm
With remote switch connectionYes
Monitoring equipmentNone
Lamp typeLED not exchangeable
With light sourceYes
Luminaire with limited surface temperature, sign "D“No
Number of lighting heads24
Recognition distance20m
With pictogramNo
Rated luminous flux according to IEC 62722-2-1250lm
Colour temperature5700 - 5700K
Nominal operation time1 - 1h
Rated ambient temperature according to IEC62722-2-15 - 30°C
Light distributorReflector
Built-in height/depth96mm
Power factor0.442
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP40
Max. system power1.4W
