Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodSurface mounting/recessed mounting
Protection classII
Width110mm
FunctionEscape route lighting/signage
Lamp holderNone
Conductor cross section2.5mm²
Connection typePlug-in connection
Colour housingWhite
Voltage typeAC
Type of control gearLED operating device current-controlled
With remote controlNo
Built-in width95mm
Suitable for labelling typeInsert sheet/plate
Number of poles2
Length290mm
Height/depth40mm
Material housingPlastic
Lamp typeLED not exchangeable
Number of lighting heads48
Built-in length272mm
Material coverPlastic, transparent
Impact strengthIK03
Battery qualityNiCd
Nominal voltage230 - 230V
Degree of protection (IP)IP40
With light sourceYes
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps1
With remote switch connectionYes
Recognition distance20m
Nominal current15.6 - 15.6mA
Colour temperature5053 - 5053K
Max. system power3.6W
Constant light output (CLO)No
With pictogramNo
Luminous flux in standby mode60lm
Rated ambient temperature according to IEC62722-2-15 - 30°C
Light distributorReflector
Nominal operation time3 - 3h
Exchangeable control gearNo
Suitable for standby switchingNo
Suitable for continuous circuitNo
Built-in height/depth96mm
Power factor0.442
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

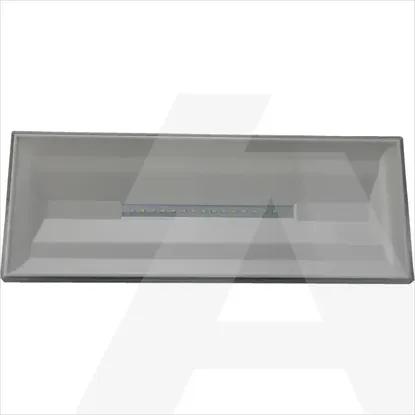

NXL250-3H | Emergency luminaire NexiLite 250LM 3H Nm/m
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Surface mounting/recessed mounting
Protection class
II
Width
110mm
Function
Escape route lighting/signage
Lamp holder
None
Conductor cross section
2.5mm²
Connection type
Plug-in connection
Colour housing
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
With remote control
Built-in width
95mm
Suitable for labelling type
Insert sheet/plate
Number of poles
2
Length
290mm
Height/depth
40mm
Material housing
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
48
Built-in length
272mm
Material cover
Plastic, transparent
Impact strength
IK03
Battery quality
NiCd
Nominal voltage
230 .. 230V
Degree of protection (IP)
IP40
With light source
Luminaire with limited surface temperature, sign "D“
Suitable for number of lamps
1
With remote switch connection
Recognition distance
20m
Nominal current
15.6 .. 15.6mA
Colour temperature
5053 .. 5053K
Max. system power
3.6W
Constant light output (CLO)
With pictogram
Luminous flux in standby mode
60lm
Rated ambient temperature according to IEC62722-2-1
5 .. 30°C
Light distributor
Reflector
Nominal operation time
3 .. 3h
Exchangeable control gear
Suitable for standby switching
Suitable for continuous circuit
Built-in height/depth
96mm
Power factor
0.442
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
