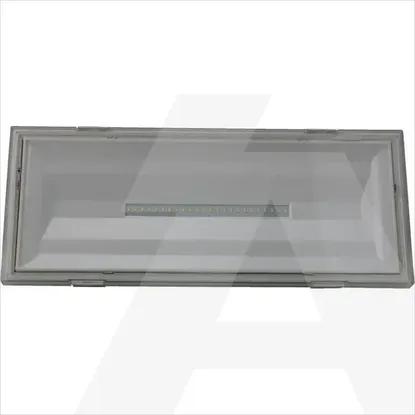

NXL250-IP | Emergency luminaire NexiLite 250LM 1H IP65
Code: 1958095
ManufacturerEaton
Catalog numberNXL250-IP
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191603151
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Width125mm
Lamp holderNone
Protection classII
Connection typePlug-in connection
Built-in width95mm
Power supply systemPeripheral (individual battery)
Number of poles2
Colour housingWhite
Suitable for labelling typeInsert sheet/plate
Type of control gearLED operating device current-controlled
Length308mm
Voltage typeAC
Built-in length272mm
Material housingPlastic
Height/depth53mm
Material coverPlastic, transparent
Lamp typeLED not exchangeable
Number of lighting heads24
Impact strengthIK07
With light sourceYes
Nominal voltage230 - 230V
Monitoring equipmentNone
With remote switch connectionYes
Battery qualityNiCd
Suitable for number of lamps1
Rated ambient temperature according to IEC62722-2-15 - 30°C
Recognition distance20m
Nominal operation time1 - 1h
Rated luminous flux according to IEC 62722-2-1250lm
Luminaire with limited surface temperature, sign "D“No
With pictogramNo
Colour temperature5700 - 5700K
Built-in height/depth96mm
Power factor0.442
Light distributorReflector
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP65
Max. system power1.4W
