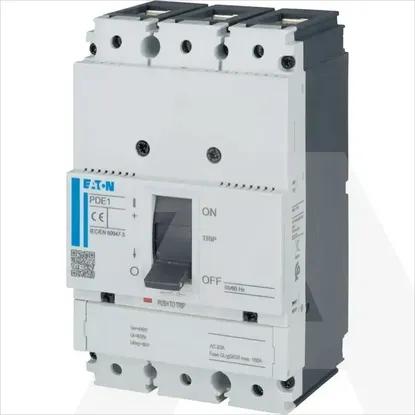

PDE13S0160SNNJ | Switch disconnector, 3p, In=160A, Icw(1s)=2kA, box terminal
Code: 1959058
ManufacturerEaton
Catalog numberPDE13S0160SNNJ
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code9010238099135
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Depth145mm
Rated operation power at AC-3, 400 V0kW
Height87mm
Number of auxiliary contacts as normally open contact0
Width89mm
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP2X
Type of electrical connection of main circuitFrame clamp
Motor drive integratedNo
Conditioned rated short-circuit current Iq0kA
Version as safety switchNo
Colour control elementBlack
Version as main switchNo
Number of switches1
Version as maintenance-/service switchNo
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operation power at AC-23, 400 V0kW
Version as emergency stop installationNo
Type of control elementRocker lever
Rated short-time withstand current lcw2kA
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V0A
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V0kW
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V0A
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC440V
