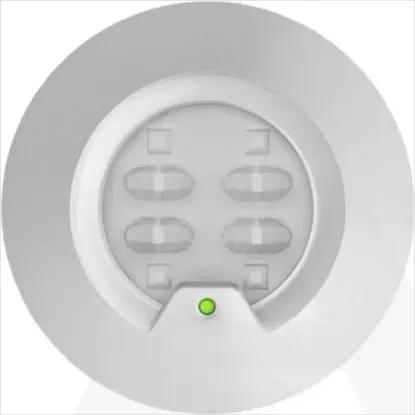

RT2RSO150SA3H | Emergency luminaire RoundTech MR 150LM 3H open-space
Code: 1959442
ManufacturerEaton
Catalog numberRT2RSO150SA3H
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191812362
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Number of poles2
Connection typeScrew connection
Height/depth58mm
Outer diameter110mm
Power supply systemPeripheral (individual battery)
Built-in diameter64mm
Length220mm
Width195mm
Lamp holderNone
Colour housingWhite
Conductor cross section2.5mm²
Built-in width110mm
Voltage typeAC
Protection classII
Number of lighting heads1
Material housingPlastic
Lamp typeLED not exchangeable
Material coverPlastic, transparent
Suitable for number of lamps1
Luminaire with limited surface temperature, sign "D“No
Luminous flux in standby mode0lm
Nominal operation time3 - 3h
Nominal voltage230 - 230V
Colour temperature5700 - 5700K
Monitoring equipmentNone
With remote switch connectionNo
Power factor0.5
Built-in length200mm
With light sourceYes
With pictogramNo
Impact strengthIK05
Rated luminous flux according to IEC 62722-2-1150lm
Built-in height/depth200mm
Battery qualityLithium-ions
Light distributorFocal lens
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP44
Max. system power0.3W
