Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Mains frequency50/60 Hz
Mains voltage380 - 480V
Number of phases input3
Number of phases output3
Max. output voltage480V
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage45kW
Nominal output current I2N88A
Number of analogue outputs2
Relative symmetric net voltage tolerance10%
Number of digital outputs3
Number of analogue inputs2
With control elementNo
Relative symmetric net frequency tolerance5%
Application in industrial area permittedYes
Max. output at linear load at rated output voltage45kW
Number of digital inputs6
Application in domestic- and commercial area permittedYes
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for LONYes
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetYes
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces serial TTY0
Supporting protocol for other bus systemsYes
Number of HW-interfaces RS-2320
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces USB1
Number of HW-interfaces RS-4220
Number of interfaces PROFINET0
Number of HW-interfaces RS-4851
With optical interfaceNo
Number of HW-interfaces parallel2
With PC connectionNo
Integrated breaking resistanceNo
Degree of protection (IP)IP21
Height732mm
Number of HW-interfaces other2
4-quadrant operation possibleNo
Degree of protection (NEMA)1
Type of converterU converter
Width203mm
Depth295mm
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

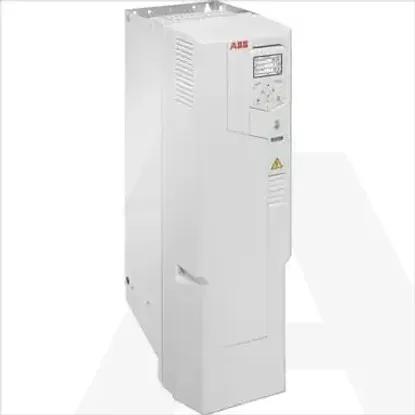

ACH580-01-088A-4 Pld: 45kW, Ild: 83A
