Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Depth369mm
Width252mm
Number of digital outputs3
With control elementNo
Height727mm
Number of digital inputs6
Number of analogue inputs2
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONYes
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4851
Number of HW-interfaces other2
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel2
With optical interfaceNo
Supporting protocol for CANYes
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
Number of HW-interfaces USB1
Supporting protocol for DeviceNetYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Degree of protection (IP)IP21
With PC connectionNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Type of converterU converter
Number of interfaces PROFINET0
Mains voltage380 - 480V
4-quadrant operation possibleNo
Number of phases output3
Application in industrial area permittedYes
Max. output frequency500Hz
Number of phases input3
Application in domestic- and commercial area permittedYes
Integrated breaking resistanceNo
Max. output at linear load at rated output voltage75kW
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Max. output at quadratic load at rated output voltage75kW
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Max. output voltage480V
Degree of protection (NEMA)1
Supporting protocol for BACnetYes
Nominal output current I2N145A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

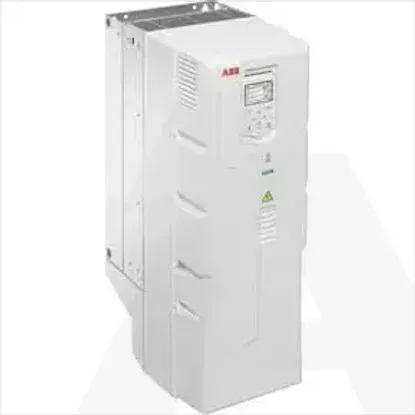

ACH580-01-145A-4 Pld: 75kW, Ild: 138A
