Details

  • •Circuit breakers and fuses

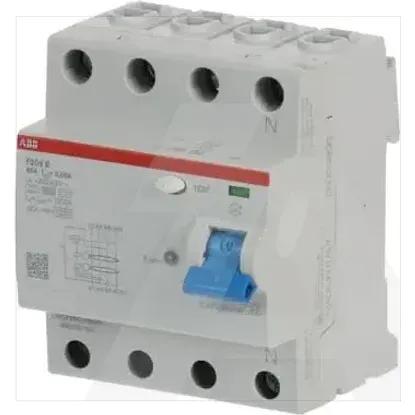

  • •Residual current circuit breaker (RCCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth69.5mm
Mounting methodDIN rail
Rated insulation voltage Ui440V
Selective protectionNo
Short-time delayed trippingNo
RAL-number (similar)-
FrequencyOther
Rated impulse withstand voltage Uimp4kV
With interlocking deviceNo
Connectable conductor cross section solid-core1 - 25mm²
Power loss6.95W
Short-circuit breaking capacity (Icw)-kA
Pollution degree3
Explosion-proofNo
Connectable conductor cross section multi-wired- - -mm²
Surge current capacity-kA
Degree of protection (IP)IPX4
Ambient temperature during operating-25 - 70°C
Width in number of modular spacings4
Additional equipment possibleYes
Rated current40A
Rated voltage400V
Number of poles4
Rated fault current0.03A
Leakage current typeB
